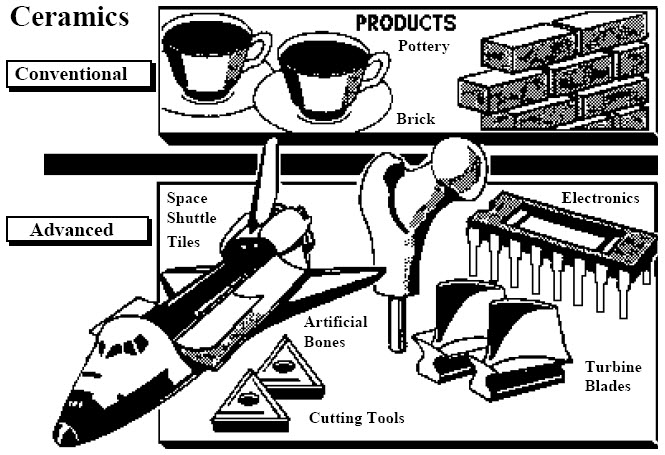

Figure 1: Ceramics
Ceramics are materials that are composed of inorganic substances. Ceramics is a refractory, inorganic, and nonmetallic material. Traditional ceramics include clay products, silicate glass and cement; while advanced ceramics consist of carbides (SiC), pure oxides (Al2O3), nitrides (Si3N4), non-silicate glasses and many others.
| Ceramic Compound | Melting Point oC |
|---|---|
| Magnesium Oxide | 2798o |
| Aluminum Oxide | 2050o |
| Silicon Dioxide | 1715o |
| Silicon Nitride | 1900o |
| Silicon Carbide | 2500o |
| Product Area | Product |
| Aerospace | space shuttle tiles, thermal barriers, high temperature glass windows, fuel cells |
| Consumer Uses | glassware, windows, pottery,magnets, dinnerware, ceramic tiles, lenses, home electronics, microwave transducers |
| Automotive | catalytic converters, ceramic filters, airbag sensors, ceramic rotors, valves, spark plugs, pressure sensors, thermistors, vibration sensors, oxygen sensors, safety glass windshields, piston rings |
| Medical Bioceramics) | orthopedic joint replacement, prosthesis, dental restoration, bone implants |
| Military | structural components for ground, air and naval vehicles, missiles, sensors |
| Computers | insulators, resistors, superconductors, capacitors, ferroelectric components, microelectronic packaging |
| Other Industries | bricks, cement, membranes and filters, lab equipment |
| Communications | fiber optic/laser communications, TV and radio components, microphones |
One of the most interesting high-temperature applications of ceramic materials is their use on the space shuttle. Almost the entire exterior of the shuttle is covered with ceramic tiles made from high purity amorphous silica fibers. Those exposed to the highest temperatures have an added layer of high-emittance glass. These tiles can tolerate temperatures up to 1480o C for a limited amount of time. Some of the high temperatures experienced by the shuttle during entry and ascent are shown in Figure 2.

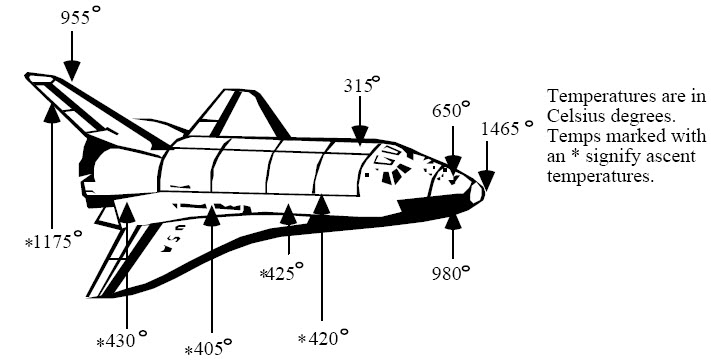

Figure 2: Space Shuttle's ascent and descent temperatures
